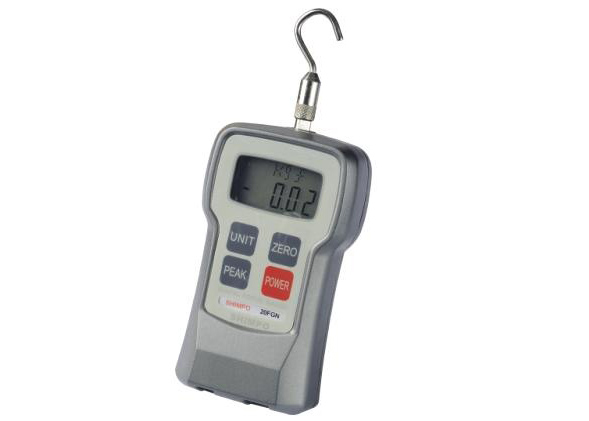

Digital Force Tester Push Pull Gauge FGN-20

Products

Your present location:Home > Industrial Tools > Test Meters >

Product Name:

Description

Message

Feature

● Easy to test tension/compression force

● Digital display,easy to read out

● High precision with accuracy error within ±0.5%

● Light,compact design

Specification

Model	FGN-10	FGN-20	FGN-50	FGN-100H	FGN-250H
Rating Loading	±98.1N	±196.1N	±490.3N	±980.7N	±2452N
	±10.00kgf	±20.00kgf	±50.00kgf	±100.0kgf	±250.0kgf
	±20.00lbf	±50.00lbf	±100.0lbf	±200lbf	±500lbf
Test Range	±1000N	±200.0N	±500.0N	±1000N	±2500N
	±10.00kgf	±20.00kgf	±50.00kgf	±100.0kgf	±250.0kgf
	±20.00lbf	±50.00lbf	±100.0lbf	±200lbf	±500lbf
Resolution	0.1N/0.01kgf/0.01lbf		0.1N/0.01kgf/0.1lbf	1N/0.1kgf/1lbf
Precision	±0.2%R.C.+1/2 digit（23C）
Display	4Digit,12m m LCD LCD display
Power Source	DC9V 200mA
Auto Shut Down	Idle for 10 minutes
Operating Temp.	0~40℃
Dimensions	W75h38L147mm			W82H55L214mm
Weight	450g			900g
