Products
Product Name:

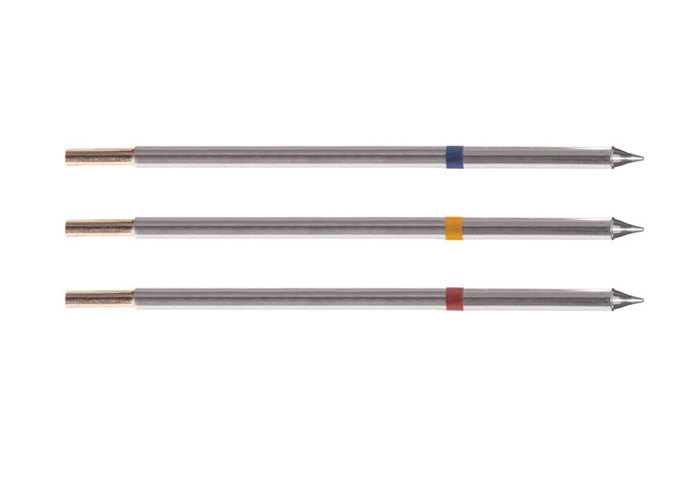

MX Tip Series
:
:
:

 ▶ MX Series

 Compatible with OKI/Metcal® "MX Series" soldering systems.

Discription:Conicalsize 0.40mm (0.016")
Image Model Tip size Head Width Tip Style Fits tool(s) Temp.
　 STTC-040 0.40mm (0.016")  16.00mm (0.63")   Conical MX-500,MX-5000 325°C -358°C
STTC-140 0.40mm (0.016")  16.00mm (0.63")   Bent Sharp MX-500,MX-5000 350°C -398°C
STTC-840 0.40mm (0.016")  16.00mm (0.63")   Bent Sharp MX-500,MX-5000 420°C -475°C
Discription: Bevel 60°1.8mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-047P 1.80mm (0.07")  6.40mm (0.25") Bevel MX-500,MX-5000 325°C -358°C
STTC-147P 1.80mm (0.07")  6.40mm (0.25") Bevel MX-500,MX-5000 350°C -398°C
STTC-847P 1.80mm (0.07")  6.40mm (0.25")  Bevel MX-500,MX-5000 420°C -475°C
Discription: Bevel 60°1.78mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-047 1.80mm (0.07")  14.00mm (0.55")  Bevel MX-500,MX-5000 325°C -358°C
STTC-147 1.80mm (0.07") 14.00mm (0.55")  Bevel MX-500,MX-5000 350°C -398°C
STTC-847 1.80mm (0.07") 14.00mm (0.55") Bevel MX-500,MX-5000 420°C -475°C
Discription: Conical 0.4mm(0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-045 0.40mm (0.016")  14.00mm (0.55")  Conical MX-500,MX-5000 325°C -358°C
STTC-145 0.40mm (0.016")  14.00mm (0.55")  Conical MX-500,MX-5000 350°C -398°C
STTC-845 0.40mm (0.016")  14.00mm (0.55")  Conical MX-500,MX-5000 420°C -475°C
Discription: Conical 0.5mm(0.02") 　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-016 0.50mm (0.02")  5.00mm (0.20")  Conical MX-500,MX-5000 325°C -358°C
STTC-116 0.50mm (0.02") 5.00mm (0.20") Conical MX-500,MX-5000 350°C -398°C
STTC-816 0.50mm (0.02") 5.00mm (0.20") Conical MX-500,MX-5000 420°C -475°C
Discription: ChiselBent 30° 1.78mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
　 STTC-098 1.78mm (0.07")  10.00mm (0.39")  Chisel Bent MX-500,MX-5000 325°C -358°C
STTC-198 1.78mm (0.07") 10.00mm (0.39")  Chisel Bent MX-500,MX-5000 350°C -398°C
STTC-898 1.78mm (0.07") 10.00mm (0.39")  Chisel Bent MX-500,MX-5000 420°C -475°C
Discription:Chisel Bent 30° 1.50mm (0.06")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-099 1.50mm (0.06") 12.00mm (0.47")  Chisel Bent MX-500,MX-5000 325°C -358°C
STTC-199 1.50mm (0.06") 12.00mm (0.47")  Chisel Bent MX-500,MX-5000 350°C -398°C
STTC-899 1.50mm (0.06") 12.00mm (0.47")  Chisel Bent MX-500,MX-5000 420°C -475°C
Discription: Chisel 30°2.5mm (0.10")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-036 2.50mm (0.10")  10.00mm (0.39")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-136 2.50mm (0.10") 10.00mm (0.39")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-836 2.50mm (0.10") 10.00mm (0.39")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:  Chisel 30° 1.78mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-037 1.78mm (0.07") 10.00mm (0.39")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-137 1.78mm (0.07") 10.00mm (0.39")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-837 1.78mm (0.07") 10.00mm (0.39")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel 30°1.5mm (0.06")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-038 1.5mm (0.06")  10.00mm (0.39")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-138 1.5mm (0.06")  10.00mm (0.39")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-838 1.5mm (0.06")  10.00mm (0.39")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel30° 1.00mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-025 1.00mm (0.04") 9.00mm (0.35")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-125 1.00mm (0.04") 9.00mm (0.35")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-825 1.00mm (0.04") 9.00mm (0.35") Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel30° 1.00mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-025P 1.00mm (0.04")  6.40mm (0.25")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-125P 1.00mm (0.04")  6.40mm (0.25")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-825P 1.00mm (0.04")  6.40mm (0.25")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel90° 3.0mm (0.12")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-003 3.00mm (0.12")  8.90mm (0.35")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-103 3.00mm (0.12")  8.90mm (0.35")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-803 3.00mm (0.12")  8.90mm (0.35")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel90° 3.0mm (0.12")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-013 3.00mm (0.12") 5.20mm (0.20")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-113 3.00mm (0.12") 5.20mm (0.20")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-813 3.00mm (0.12") 5.20mm (0.20")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:ChiselExtra Large 5.0mm (0.20")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-017 5.00mm (0.20")  7.50mm (0.30")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-117 5.00mm (0.20")  7.50mm (0.30")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-817 5.00mm (0.20")  7.50mm (0.30")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel 30°2.5mm (0.10")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-036P 2.50mm (0.10")  6.40mm (0.25")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-136P 2.50mm (0.10")  6.40mm (0.25")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-836P 2.50mm (0.10")  6.40mm (0.25")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Chisel 30°1.80mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-037P 1.80mm (0.07")  6.40mm (0.25")  Chisel  MX-500,MX-5000 325°C -358°C
STTC-137P 1.80mm (0.07")  6.40mm (0.25")  Chisel  MX-500,MX-5000 350°C -398°C
STTC-837P 1.80mm (0.07")   6.40mm (0.25")  Chisel  MX-500,MX-5000 420°C -475°C
Discription:Conical 0.4mm(0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-045P 0.40mm (0.016")  8.90mm (0.35")  Conical MX-500,MX-5000 325°C -358°C
STTC-145P 0.40mm (0.016")  8.90mm (0.35")  Conical MX-500,MX-5000 350°C -398°C
STTC-845P 0.40mm (0.016")  8.90mm (0.35")  Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-001P 1.00mm (0.04")  7.40mm (0.29")  Conical MX-500,MX-5000 325°C -358°C
STTC-101P 1.00mm (0.04")  7.40mm (0.29")  Conical MX-500,MX-5000 350°C -398°C
STTC-801P 1.00mm (0.04")  7.40mm (0.29")  Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 0.4mm (0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-006 0.40mm (0.016")    13.00mm (0.51")   Conical MX-500,MX-5000 325°C -358°C
STTC-106 0.40mm (0.016")    13.00mm (0.51")   Conical MX-500,MX-5000 350°C -398°C
STTC-806 0.40mm (0.016")    13.00mm (0.51")   Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-001 1.00mm (0.04")  13.40mm (0.53")  Conical MX-500,MX-5000 325°C -358°C
STTC-101 1.00mm (0.04")  13.40mm (0.53")  Conical MX-500,MX-5000 350°C -398°C
STTC-801 1.00mm (0.04")  13.40mm (0.53")  Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 0.4mm (0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-022 0.40mm (0.016")     8.50mm (0.33")   Conical MX-500,MX-5000 325°C -358°C
STTC-122 0.40mm (0.016")     8.50mm (0.33")   Conical MX-500,MX-5000 350°C -398°C
STTC-822 0.40mm (0.016")     8.50mm (0.33")   Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-007 1.00mm (0.04")  16.40mm (0.65")  Conical MX-500,MX-5000 325°C -358°C
STTC-107 1.00mm (0.04")  16.40mm (0.65")  Conical MX-500,MX-5000 350°C -398°C
STTC-807 1.00mm (0.04")  16.40mm (0.65")  Conical MX-500,MX-5000 420°C -475°C
Discription:ConicalSharp 0.5mm (0.02")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-043 0.50mm (0.02")  15.40mm (0.61")  Conical Sharp MX-500,MX-5000 325°C -358°C
STTC-143 0.50mm (0.02")  15.40mm (0.61")  Conical Sharp MX-500,MX-5000 350°C -398°C
STTC-843 0.50mm (0.02")  15.40mm (0.61")  Conical Sharp MX-500,MX-5000 420°C -475°C
Discription:Hoof 3.3mm(0.13") 　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-0147 3.30mm (0.13")    17.90mm (0.70")    Hoof  MX-500,MX-5000 325°C -358°C
SMTC-1447 3.30mm (0.13")    17.90mm (0.70")    Hoof  MX-500,MX-5000 350°C -398°C
SMTC-8147 3.30mm (0.13")    17.90mm (0.70")    Hoof  MX-500,MX-5000 420°C -475°C
Discription:Knife4.83mm (0.19"), Increased Tin Area 5.84mm (0.23"
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-0173 4.83mm (0.19")    16.00mm (0.63")   Knife MX-500,MX-5000 325°C -358°C
SMTC-1173 4.83mm (0.19")    16.00mm (0.63")   Knife MX-500,MX-5000 350°C -398°C
SMTC-8173 4.83mm (0.19")    16.00mm (0.63")   Knife MX-500,MX-5000 420°C -475°C
Discription:Hoof 1.52mm(0.06")　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-0167 1.52mm (0.06")  16.40mm (0.65")   Hoof  MX-500,MX-5000 325°C -358°C
SMTC-1167 1.52mm (0.06")  16.40mm (0.65")  Hoof  MX-500,MX-5000 350°C -398°C
SMTC-8167 1.52mm (0.06")  16.40mm (0.65")  Hoof  MX-500,MX-5000 420°C -475°C
Discription:Knife4.83mm (0.19"), Tin Area 2.03mm (0.08")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-0161 4.83mm (0.19")  16.40mm (0.65")  Knife  MX-500,MX-5000 325°C -358°C
SMTC-1161 4.83mm (0.19")  16.40mm (0.65")  Knife  MX-500,MX-5000 350°C -398°C
SMTC-8161 4.83mm (0.19")  16.40mm (0.65")  Knife  MX-500,MX-5000 420°C -475°C
Discription:BladeTip 10.41mm (0.41")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-060 10.41mm (0.41") 9.0mm(0.35") Blade  MX-500,MX-5000 325°C -358°C
SMTC-160 10.41mm (0.41") 9.0mm(0.35") Blade  MX-500,MX-5000 350°C -398°C
SMTC-860 10.41mm (0.41") 9.0mm(0.35") Blade  MX-500,MX-5000 420°C -475°C
Discription:BladeTip 15.75mm (0.62")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-061 15.75mm (0.62")  9.00mm(0.35")   Blade  MX-500,MX-5000 325°C -358°C
SMTC-161 15.75mm (0.62")  9.00mm(0.35")   Blade  MX-500,MX-5000 350°C -398°C
SMTC-861 15.75mm (0.62")  9.00mm(0.35")   Blade  MX-500,MX-5000 420°C -475°C
Discription:BladeTip 15.75mm (0.62")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-062 22.10mm (0.87")  9.00mm (0.35")  Blade  MX-500,MX-5000 325°C -358°C
SMTC-162 22.10mm (0.87")  9.00mm (0.35")  Blade  MX-500,MX-5000 350°C -398°C
SMTC-862 22.10mm (0.87")  9.00mm (0.35")  Blade  MX-500,MX-5000 420°C -475°C
Discription:ChiselExtra Large 5.0mm (0.20")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-065 5.00mm (0.20")  11.40mm (0.45")  Chise MX-500,MX-5000 325°C -358°C
STTC-165 5.00mm (0.20")  11.40mm (0.45")  Chise MX-500,MX-5000 350°C -398°C
STTC-865 5.00mm (0.20")  11.40mm (0.45")  Chise MX-500,MX-5000 420°C -475°C
Discription:Bevel60° Long Reach 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-046 1.00mm (0.04")  14.60mm (0.57")  Bevel MX-500,MX-5000 325°C -358°C
STTC-146 1.00mm (0.04")  14.60mm (0.57")  Bevel MX-500,MX-5000 350°C -398°C
STTC-846 1.00mm (0.04")  14.60mm (0.57")  Bevel MX-500,MX-5000 420°C -475°C
Discription:HoofLong Reach 3.05mm (0.12")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-0170 3.05mm (0.12")     16.40mm (0.65")   Hoof MX-500,MX-5000 325°C -358°C
STTC-1170 3.05mm (0.12")     16.40mm (0.65")   Hoof MX-500,MX-5000 350°C -398°C
STTC-8170 3.05mm (0.12")     16.40mm (0.65")   Hoof MX-500,MX-5000 420°C -475°C
Discription:Chisel60° Long Reach 1.78mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-042 1.78mm (0.07")  15.00mm (0.59")  Chisel MX-500,MX-5000 325°C -358°C
STTC-142 1.78mm (0.07")  15.00mm (0.59")  Chisel MX-500,MX-5000 350°C -398°C
STTC-8142 1.78mm (0.07")  15.00mm (0.59")  Chisel MX-500,MX-5000 420°C -475°C
Discription:Conical Bent30° Fine 0.51mm
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
SMTC-0172 0.51mm (0.02")  15.40mm (0.61")  Conical Bent MX-500,MX-5000 325°C -358°C
SMTC-1172 0.51mm (0.02")  15.40mm (0.61")  Conical Bent MX-500,MX-5000 350°C -398°C
SMTC-8172 0.51mm (0.02")  15.40mm (0.61")  Conical Bent MX-500,MX-5000 420°C -475°C
Discription:MicroFine 0.25mm (0.01")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
　 STTC-090 0.25mm (0.01")  13.40mm (0.53") Conical MX-500,MX-5000 325°C -358°C
STTC-190 0.25mm (0.01")  13.40mm (0.53") Conical MX-500,MX-5000 350°C -398°C
STTC-890 0.25mm (0.01")  13.40mm (0.53") Conical MX-500,MX-5000 420°C -475°C
Discription:BentSharp 30° 0.4mm (0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-026 0.40mm (0.016")  8.40mm (0.33")  Conical Bent MX-500,MX-5000 325°C -358°C
STTC-126 0.40mm (0.016")  8.40mm (0.33") Conical Bent MX-500,MX-5000 350°C -398°C
STTC-826 0.40mm (0.016")  8.40mm (0.33") Conical Bent MX-500,MX-5000 420°C -475°C
Discription:BentSharp 30° 0.4mm (0.016")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STTC-044 0.50mm (0.02")  14.00mm (0.55")  Conical Bent MX-500,MX-5000 325°C -358°C
STTC-144 0.50mm (0.02")  14.00mm (0.55")  Conical Bent MX-500,MX-5000 350°C -398°C
STTC-844 0.50mm (0.02")  14.00mm (0.55")  Conical Bent MX-500,MX-5000 420°C -475°C
Search
more+Contact
ShineNow Electronics Co.,Ltd

+86-0755-23503556

+86-13528460215
julia.liu0314
julia.liu0314
julia_liu@shinenow-electronics.com
julia20121215@yahoo.com

R.1111, Shencai Business Mansion,Fuyong Town, Bao’an District, Shenzhen, China

外贸网站建设 |
offdocument.oncontextmenu=new Function("event.returnValue=false;"); offdocument.onselectstart=new Function("event.returnValue=false;");
document.write('&x=201631103648"><\/script>');
