▶ SxP Series
Compatible with OKI/Metcal® MFR (SxP) soldering systems.
|
Discription: Chisel 30° 1.20mm (0.047)
|
| Image |
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH10
|
1.20mm(0.05)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100,MFR-PS2200,MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH10
|
1.20mm(0.05)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2
|
350°C- 398°C
|
|
SCP-CH10
|
1.20mm(0.05)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 1.60mm (0.06)
|
|
|
Mode
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH10
|
1.60mm(0.06)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH10
|
1.60mm(0.06)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH10
|
1.60mm(0.06)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 2.40mm (0.09)
|
|
|
Mode
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH25
|
2.40mm(0.09)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH25
|
2.40mm(0.09)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH25
|
2.40mm(0.09)
|
13.00mm(0.51)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 5.20mm (0.20)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH50
|
5.20mm(0.20)
|
12.00mm(0.47)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH50
|
5.20mm(0.20)
|
12.00mm(0.47)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH50
|
5.20mm(0.20)
|
12.00mm(0.47)
|
Chisel
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Knife 4.70mm (0.185)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRK50
|
4.70mm(0.19)
|
13.00mm(0.51)
|
Knife
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRK50
|
4.70mm(0.19)
|
13.00mm(0.51)
|
Knife
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRK50
|
4.70mm(0.19)
|
13.00mm(0.51)
|
Knife
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Conical 0.4mm (0.016)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
 |
STP-CNL04
|
0.40mm(0.016)
|
14.00mm (0.55)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CNL04
|
0.40mm(0.016)
|
14.00mm (0.55)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CNL04
|
0.40mm(0.016)
|
14.00mm (0.55)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Conical 0.5mm (0.02)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CN05
|
0.50mm(0.02)
|
5.00mm (0.20)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CN05
|
0.50mm(0.02)
|
5.00mm (0.20)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CN05
|
0.50mm(0.02)
|
5.00mm (0.20)
|
Conical
|
MFR-PS1100, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel Bent 30° 1.5mm (0.06)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CHB15
|
1.50mm(0.06)
|
12.00mm (0.47)
|
Chisel Bent
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CHB15
|
1.50mm(0.06)
|
12.00mm (0.47)
|
Chisel Bent
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CHB15
|
1.50mm(0.06)
|
12.00mm (0.47)
|
Chisel Bent
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 2.5mm (0.10)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
 |
STP-CH25
|
2.50mm(0.10)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH25
|
2.50mm(0.10)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH25
|
2.50mm(0.10)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 1.78mm (0.07)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH20
|
1.78mm(0.07)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH20
|
1.78mm(0.07)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH20
|
1.78mm(0.07)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription: Chisel 30° 1.5mm (0.06)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH15
|
1.50mm(0.06)
|
10.00mm(0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH15
|
1.50mm(0.06)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH15
|
1.50mm(0.06)
|
10.00mm (0.39)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Chisel 30° 1.0mm (0.04)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH10
|
1.00mm(0.04)
|
9.00mm(0.35)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH10
|
1.00mm(0.04)
|
9.00mm(0.35)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH10
|
1.00mm(0.04)
|
9.00mm(0.35)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Chisel Extra Large 5.0mm (0.20)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CH50
|
5.00mm(0.20)
|
7.50mm(0.30)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CH50
|
5.00mm(0.20)
|
7.50mm(0.30)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CH50
|
5.00mm(0.20)
|
7.50mm(0.30)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Conical 0.4mm (0.016)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CN04
|
0.40mm(0.016)
|
8.90mm(0.35)
|
Conical
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CN04
|
0.40mm(0.016)
|
8.90mm(0.35)
|
Conical
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CN04
|
0.40mm(0.016)
|
8.90mm(0.35)
|
Conical
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Knife 4.83mm (0.19), Increased Tin Area 5.84mm (0.23)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRK50
|
4.83mm(0.19)
|
16.00mm(0.63)
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRK50
|
4.83mm(0.19)
|
16.00mm(0.63)
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRK50
|
4.83mm(0.19)
|
16.00mm(0.63)
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Hoof 1.52mm (0.06)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRH15, STP-DRH615
|
1.52mm(0.06)
|
16.40mm(0.65)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRH15, SFP-DRH615
|
1.52mm(0.06)
|
16.40mm(0.65)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRH15, SCP-DRH615
|
1.52mm(0.06)
|
16.40mm(0.65)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Hoof 3.3mm (0.13)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRH35
|
3.30mm(0.13)
|
17.90mm(0.70)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRH35
|
3.30mm(0.13)
|
17.90mm(0.70)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRH35
|
3.30mm(0.13)
|
17.90mm(0.70)
|
Hoof
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Knife 4.83mm (0.19), Tin Area 2.03mm (0.08)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRK50
|
2.03mm(0.08)
|
16.40mm(0.65)
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRK5
|
2.03mm(0.08)
|
16.40mm(0.65)
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRK5
|
2.03mm(0.08)
|
16.40mm(0.65
|
Knife
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Blade Tip 10.41mm (0.41)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
RTP-BL1
|
10.41mm(0.41)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
RFP-BL1
|
10.41mm(0.41)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110,MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
RCP-BL1
|
10.41mm(0.41)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Blade Tip 15.75mm (0.62)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
RTP-BL2
|
15.75mm(0.62)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
RFP-BL2
|
15.75mm(0.62)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
RCP-BL2
|
15.75mm(0.62)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Blade Tip 22.1 mm (0.87)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
RTP-BL3
|
22.10mm(0.87)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
RFP-BL3
|
22.10mm(0.87)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
RCP-BL3
|
22.10mm(0.87)
|
9.00mm(0.35)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Bevel 60° Long Reach 1.0mm (0.04)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-BVL10, STP-DRH610
|
1.00mm(0.04)
|
14.60mm (0.57)
|
Bevel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-BVL10, SFP-DRH610
|
1.00mm(0.04)
|
14.60mm (0.57)
|
Bevel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-BVL10, SCP-DRH610
|
1.00mm(0.04)
|
14.60mm (0.57)
|
Blade
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Chisel 60° Long Reach 1.78mm (0.07)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-BVL10, STP-DRH610
|
1.78mm(0.07)
|
15.00mm(0.59)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-BVL10, SFP-DRH610
|
1.78mm(0.07)
|
15.00mm (0.59)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-BVL10, SCP-DRH610
|
1.78mm(0.07)
|
15.00mm(0.59)
|
Chisel
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Conical Bent 30° Fine 0.51mm (0.02)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-DRH05
|
0.51mm(0.02)
|
15.40mm(0.61)
|
Conical Bent
|
MFR-PS1100 MFR-PS2200,MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-DRH05
|
0.51mm(0.02)
|
15.40mm (0.61)
|
Conical Bent
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-DRH05
|
0.51mm(0.02)
|
15.40mm(0.61)
|
Conical Bent
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
Discription:Bent Sharp 30° 0.4mm (0.016)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CNB04
|
0.40mm(0.016) )
|
8.40mm(0.33)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CNB04
|
0.40mm(0.016)
|
8.40mm(0.33)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CNB04
|
0.40mm(0.016)
|
8.40mm(0.33)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|

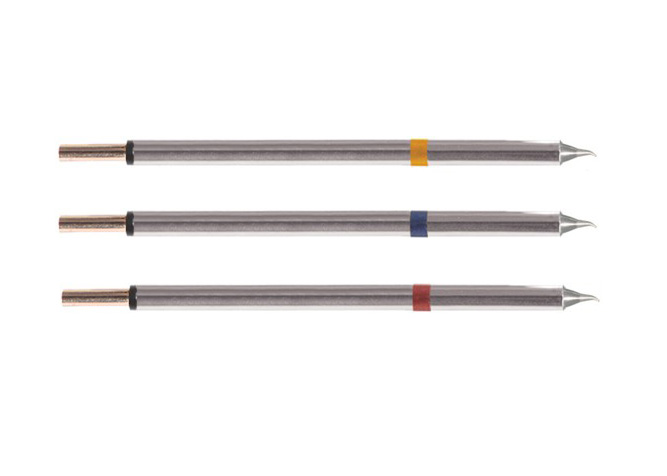

Discription:Bent Sharp 30° 0.5mm (0.02)
|
|
|
Model
|
Tip Width
|
Head Width
|
Tip Style
|
Fits tool(s)
|
Temp.
|
|
|
STP-CNB05
|
0.50mm(0.02)
|
14.00mm(0.55)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
325°C- 358°C
|
|
SFP-CNB05
|
0.50mm(0.02)
|
14.00mm(0.55)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
350°C- 398°C
|
|
SCP-CNB05
|
0.50mm(0.02)
|
14.00mm(0.55)
|
Bent Sharp
|
MFR-PS110, MFR-PS2200, MFR-PS1K, MFR-PS2K
|
420°C- 475°C
|
|
