Product Name:

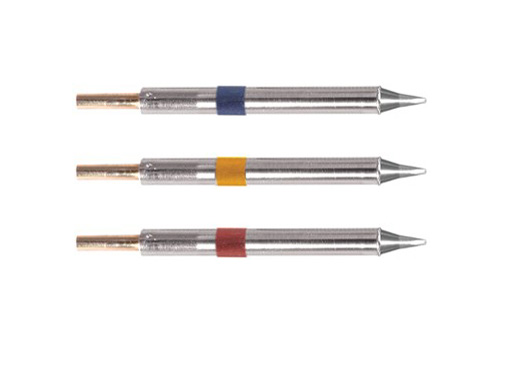

SxV Tip Series
:
:
:

 ▶ SxV Series

 Compatible with OKI/Metcal® SxV soldering systems.

Discription:Chisel30° 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
　 STV-CH10 STV-CH10A 1.00mm (0.04")  11.40mm (0.45")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CH10 SFV-CH10A 1.00mm (0.04")  11.40mm (0.45")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CH10 SCV-CH10A 1.00mm (0.04")   11.40mm (0.45")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Chisel 30°1.50mm (0.06")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CH15A 1.50mm (0.06")   10.40mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CH15A 1.50mm (0.06")   10.40mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CH15A 1.50mm (0.06") 10.40mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Chisel 30°1.78mm (0.07")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CH20 1.78mm (0.07") 10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CH20 1.78mm (0.07") 10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CH20 1.78mm (0.07") 10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Chisel 30°2.5mm (0.10")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CH24A, STV-CH25 2.50mm (0.10") 10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CH24A, SFV-CH25 2.50mm (0.10")   10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CH24A, SCV-CH25 2.50mm (0.10") 10.30mm (0.41")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:ChiselExtra Large 5.0mm (0.20")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CH50, STV-CH25A 5.00mm (0.20")   14.00mm (0.55")   Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CH50, SFV-CH50A 5.00mm (0.20") 14.00mm (0.55")   Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CH50, SCV-CH50A 5.00mm (0.20") 14.00mm (0.55")  Chisel  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:ConicalSharp 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CNL10 1.00mm (0.04")   14.40mm (0.57")   Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CNL10 1.00mm (0.04")   14.40mm (0.57")   Conical Sharp  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CNL10 1.00mm (0.04")     14.40mm (0.57") Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:ConicalSharp 0.5mm (0.02")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CN05, STV-CN05A, STV-CNL04 0.50mm (0.02") 11.80mm (0.46")   Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CN05, SFV-CN05A, SFV-CNL04 0.50mm (0.02") 11.80mm (0.46")   Conical Sharp  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CN05, SCV-CN05A, SCV-CNL04 0.50mm (0.02")  11.80mm (0.46")  Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:ConicalSharp 1.0mm (0.04")
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CNL10A 1.00mm (0.04") 15.40mm (0.61") Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CNL10A 1.00mm (0.04") 15.40mm (0.61") Conical Sharp  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CNL10A 1.00mm (0.04")   15.40mm (0.61") Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:ConicalSharp 1.4mm (0.055")　　　　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CNL14 1.40mm (0.06") 15.40mm (0.61") Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CNL14 1.40mm (0.06") 15.40mm (0.61") Conical Sharp  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CNL14 1.40mm (0.06") 15.40mm (0.61") Conical Sharp PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Hoof 2.30mm(0.09")　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-DRH20CP 2.30mm (0.09") 18.20mm (0.72") Hoof  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-DRH20CP 2.30mm (0.09") 18.20mm (0.72") Hoof   PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-DRH20CP 2.30mm (0.09") 18.20mm (0.72") Hoof  PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Knife 4.50mm(0.177")　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-DRK50S 4.50mm (0.18") 16.65mm (0.66")  Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-DRK50S 4.50mm (0.18") 16.65mm (0.66")  Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-DRK50S 4.50mm (0.18") 16.65mm (0.66") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:Knife4.50mm (0.177"), Increased Tin Area 6.1mm (0.24") 　　　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-DRK45A, STV-DRK50 4.50mm (0.18") 16.65mm (0.66") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-DRK45A, SFV-DRK50 4.50mm (0.18") 16.65mm (0.66") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C - 398°C
SCV-DRK45A, SCV-DRK50 4.50mm (0.18") 16.65mm (0.66") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
Discription:BentSharp 30° 0.51mm (0.02") 　　　
Image Model Tip Width Head Width Tip Style Fits tool(s) Temp.
STV-CNB05 0.51mm (0.02") 11.80mm (0.46") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  325°C -358°C
SFV-CNB05 0.51mm (0.02") 11.80mm (0.46") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  350°C -398°C
SCV-CNB05 0.51mm (0.02") 11.80mm (0.46") Knife PS900 w/SHP-K,MFR-PS1100/MFR-PS2200 w/SHP-KM  420°C -475°C
