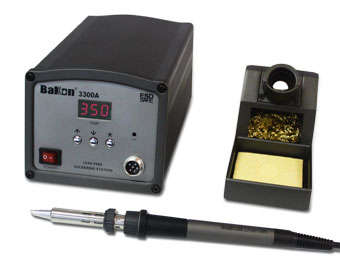

BK3300A 150W High Frequency Soldering Station
Features:
◈ Heating element was made of precious metal materials, for which greatly
Improved the ability of temperature compensation.
And speed of raising temperature again. Temperature will soon rise up to 350°C
Within 15 seconds.
◈ Iron head of patent design can welding as your wish, even if you want to weld
Electronic components 0201.
◈ Automatic cooling will prolong the life of Heating element and Iron head.
◈ You also will freely select preheating board and electricity burger tweezers
What a cute rework station!
◈ The function of self-calibration is helpful to correct temperature for one
Time within 3 or 6 months.
◈ You will set many functions when operate programmer WCB2, such as automatic
Cooling, temperature lock, temperature compensation and temperature calibration etc.
◈ The small size of the soldering station will help to space saving.
◈ Preventing from static electricity will protect precision components.
Specifications:
|
Power consumption
|
95W
|
Stents
|
WSP80
|
|
Voltage Input
|
AC220V / 50 Hz
|
Soldering pen
|
80W
|
|
Temperature Range
|
50°C~450°C
|
Cord Length
|
1.22m
|
|
Temperature Stability (No Load)
|
±2°C |
Iron Holder
|
WPH80
|
|
Temperature Stability
|
±2°C |
Tips available
|
LT Series
|
|
Resistance to the ground
|
≤2Ω
|
|
|
|
Voltage to the ground
|
≤2mv
|
|
|
|
ESD
|
YES
|
|
|
Replacement Parts:
|
PIC.
|
Name
|
Part No.
|
|
|
Iron
|
LF301
|
|
|
Soldering Tip
|
500 Series
|
|
|
Iron Holder
|
BK507-G
|
|
|
Heating Element
|
VH300
|
|
|
Cleaning Ball
|
502H
|
|
|
Cleaning Sponge
|
505
|
