Products
Product Name:

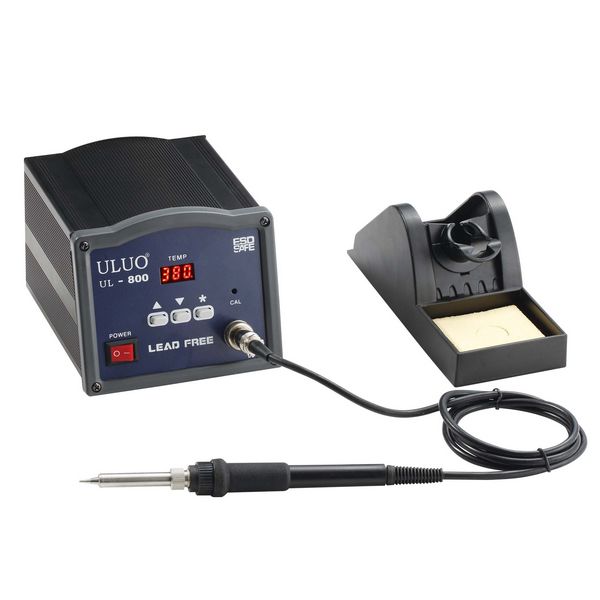

90W High Frequency Lead Free Soldering Station UL-800
:
:
:

 UL-800 90W High Frequency Soldering Station



Features:

●　High frequency and heating up fast;

●　Temperature sensor is front settled, sensitive to temperature recovery;

●　Heating element changing easily by insert and pull out directly

●　Metal case with cooling fan to prolong the component life;

●　Auto sleeping function available when the station is idle after 20 Minutes

●　Password locks function available;

●　Temperature can be calibrated in any time to satisfy the special temperature requiring,

●　Automatic power off while the station is idle left after 1 hour



Specifications:

Power Supply:

AC220V/50HZ/AC110V 60HZ

SetTemperature Range:

50～600℃

No load Power:

≤6W

Max Power:

90W

Temperature Stability(Un load):

±2℃

Tip to Ground Resistance:

＜2Ω

Tip to Ground Potential:

＜2mV

Dimensions:

L150*W130*H105 MM

Temperature Proofread Method:

Digital

Temperature lock

Yes

Automatic sleeping

Yes



Replacement Parts:

PIC.

Name

Part No.

Iron

UL800-Iron

Soldering Tip

200 Series

Iron Holder

UL802

Heating Element

UL90W

Cleaning Sponge

6*6
