150W LCD Display High Frequency Soldering Station UL-5205

Products

Your present location:Home > Soldering Systems > High Frequency Soldering Station >

Product Name:

Description

Message

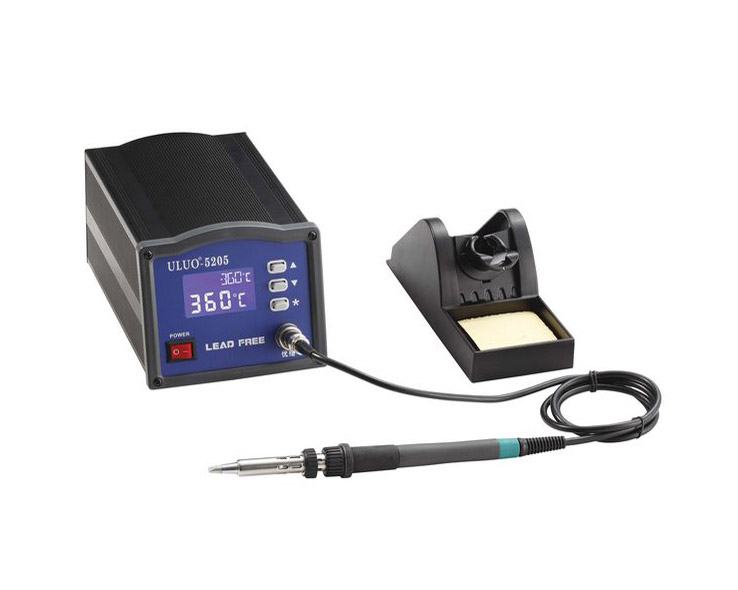

UL-5205H High Frequency Soldering Station

Features:

1.Heating element pluggable design, change heaters very easily just by inserting and pulling out directly.

2.LCD display

3.More functions available, such as auto sleeping, auto shut-off.
4.Password locks function.
5.ESD safe design,various types of tips available.

6.150W big power design, ¢8mm soldering tips also could use!

Applications:

Work Mode	Iron Handle Available	Temperature Range	Note
0	Lead-free soldering station	200℃-420℃	Suitable for small point
1	Lead-free soldering station	50℃-480℃	Suitable for big point
2	Lead-free soldering station	50℃-500℃	Suitable for big point

Note:The soldering station set serval work mode,the original mode is Mode-2

Specifications:

Power	150W
Output Voltage	AC 36V,400KHZ
Temperature range	50℃-500℃
Tip to Ground Resistance	‹2Ω
Tip to Ground Potential	‹2mV
Max Work Environmental Temperature	40℃
Temperature Stability(no load)	±2℃
Outside material	Aluminium
Outside dimension	(L)200(W)130(H)100mm
Weight(no power line)	3.9kg
Outside Material	ESD Design,Aluminium material,Stable useful.

About us:

①.We are a professional lead free soldering station and soldering tips factory.

②.Economically priced,exquisitely made.Experience & responsible QC that you can reply on.

③.Adequate supply capacity.Punctual delivery time.

④.Best after sold service.

Replacement Parts:

PIC.	Name	Part No.
	Iron	UL5205-Iron
	Soldering Tip	500 Series
	Iron Holder	UL5205-Holder
	Heating Element	UL150W
	Cleaning Sponge	6*6
