Product Name:
Soldering & Rework Station TMT-2000S
:
:
:

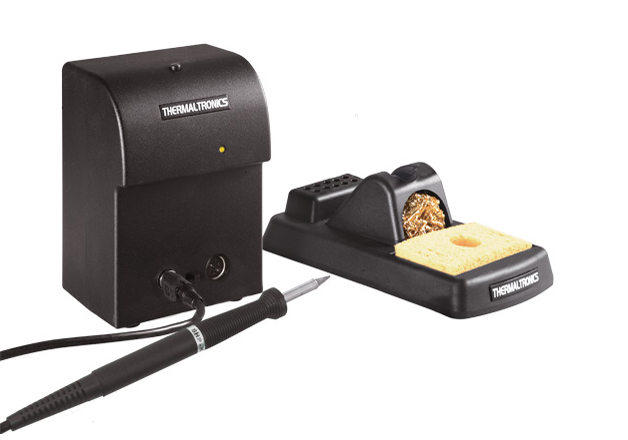

 TMT-2000S Soldering & Rework Station



The TMT-2000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.



Features:

◈  Curie Heat Technology operating at 470KHz

◈  Maximum flexibility, allows the use of K, P and S Series tips

◈  Extremely compact, weighs just 1.3KG.

◈  No calibration or operator training required.

◈  No additional coil assembly costs.



Specifications:

Input Line Voltage: 100-240 VAC, 55W
Tip to Ground Potential: <2mV, true RMS 50-500Hz
Tip to Ground Resistance: <2 Ohms DC
Idle Temperature Stability: +/- 1.1°C (2°F)
Maximum Enclosure Temperature: 50°C (122°F)
Fuse: 250V 1A
Output Power (Maximum): 50 Watts
Output Frequency: 470 Khz
Size (W x H x D): 110mm x 155mm x 92mm
Weight: 1.3 KG
Input Line Frequency: : 50/60 Hz





SYSTEM CONFIGURATIONS
TMT-2000S-K       TMT-2000S-P      TMT-2000S-SM
TMT-2000S-KM   TMT-2000S-PM



Packing List

TMT-2000PS Power Supply
SHH-4 Soldering Handpiece Holder
SHP-K1 Soldering Handpiece
RMP-1 Tip Removal Pad
BC-1 Brass Curls
SPG-1 Sulphide Free Sponge
CC-1 Connection Cable

1The handpiece will vary based on system configuration.



K Series--Tip Cartridges




P Series--Tip Cartridges

S Series--Tip Cartridges
